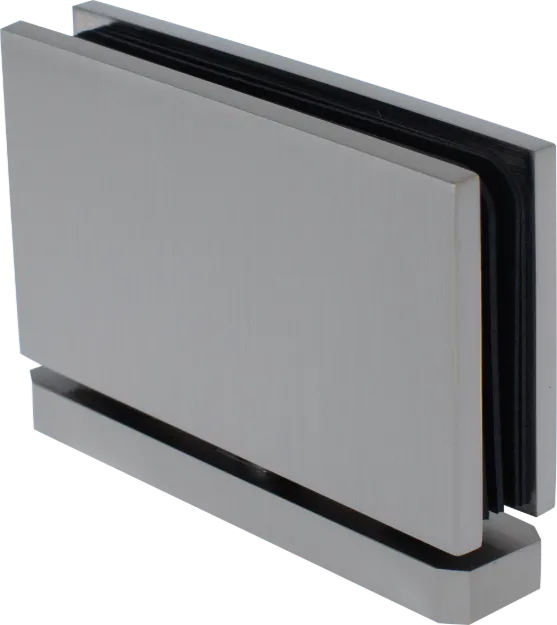

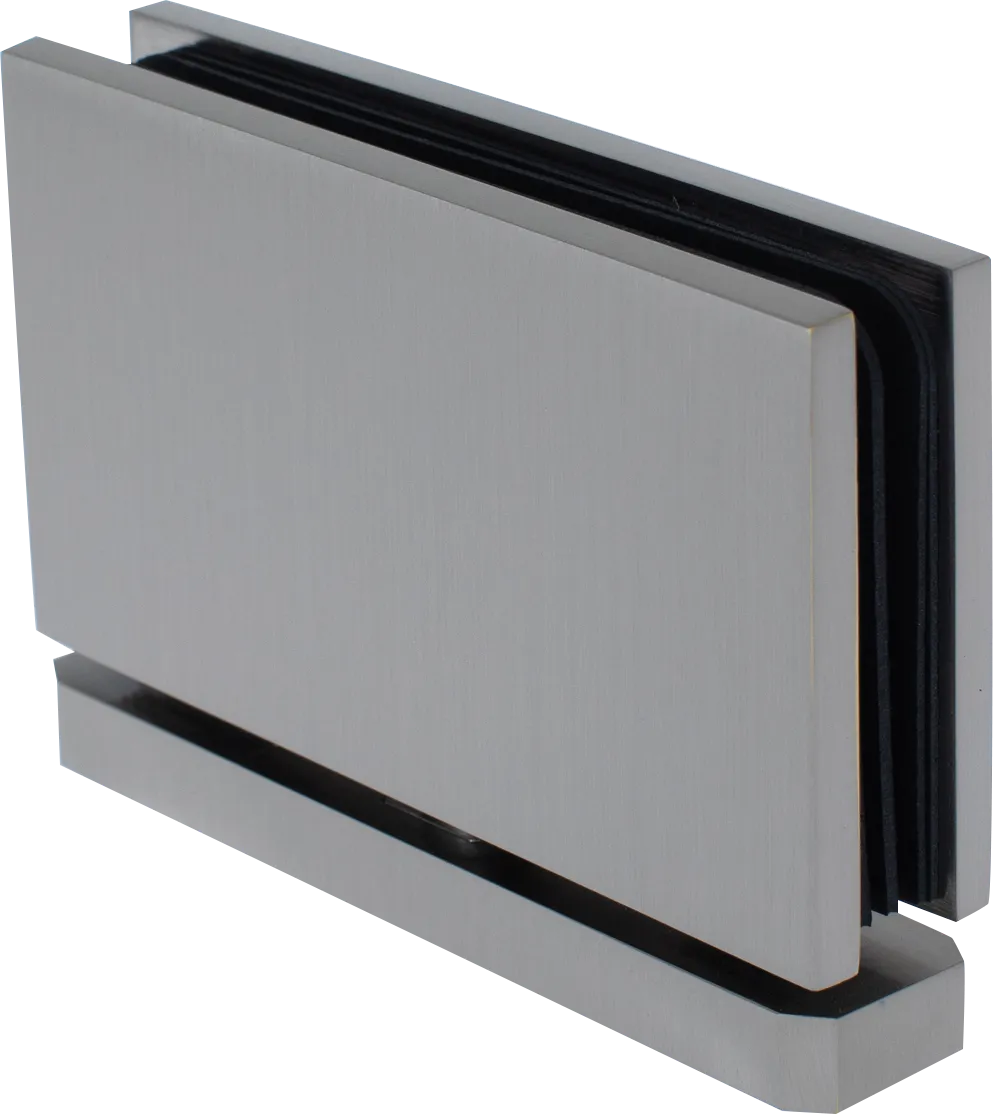

Pivot Square Hinge

SKU: Z-3820
Pivot Square Hinge
*
Availability: Please make a selection to view stock
Digital Support
Glass Requirements: • 3/8” (10mm) Tempered Glass Specifications: • Solid brass body and clear polyurethane gaskets • Screws and gaskets included • Hinge swings 90º in and 90º out with self-centering when within 15º of closed position • Glass cut-out required • Can be mounted floor and ceiling, or floor and wall using the adapter block (Z-HAB01), or floor and header (Z-SDH01) Care: • Clean with water and a soft cloth • Use of harsh or abrasive cleaners may harm finish and will void the warranty. • Do not use power tools directly on the hinge when installing or spray lubricant on this hinges • 3 year warranty on Hinges only, all other hardware 1 year warranty. Maximum Door Capacities 2 Hinges Weight: 100 lbs (45 kg) Width: 31" (727 mm)
