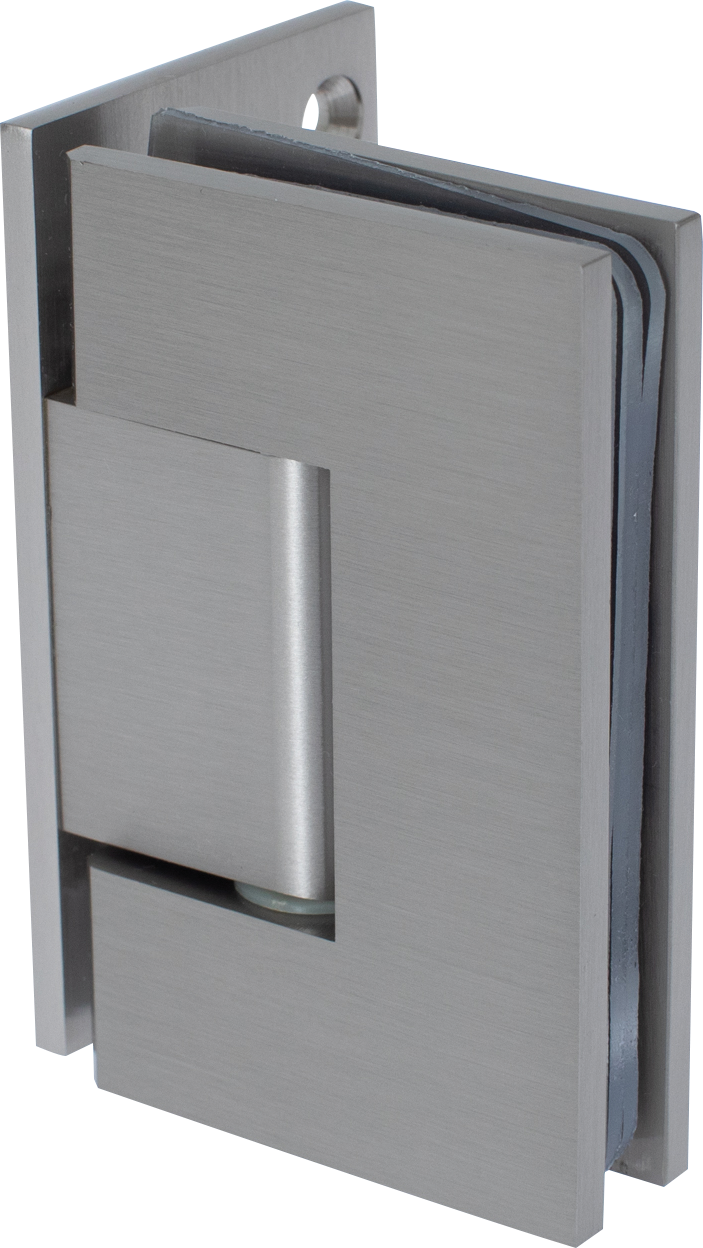

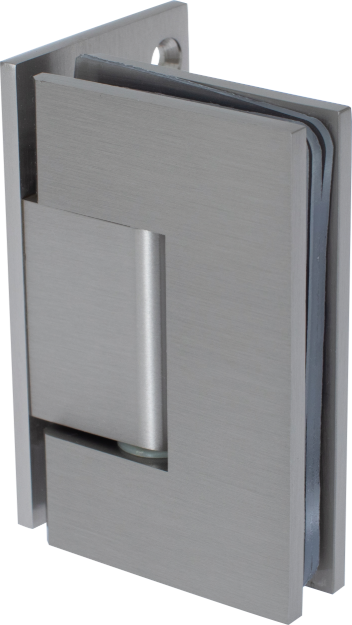

Wall Mount Offset-Back Square Hinge

SKU: z-3113
Wall Mount Offset-Back Square Hinge
*
Availability: Please make a selection to view stock
Digital Support
Glass Requirements: • 3/8” (10mm) Tempered Glass • 1/2” (12mm) Tempered Glass Specifications: • Solid brass body and clear polyurethane gaskets • Screws and gaskets included • Hinge swings 90º in and 90º out with self-centering • Self-centering when within 15º of closed position • Use thick gaskets for 3/8” glass or thin gaskets for 1/2” glass Care: • Can be cleaned with water and a soft cloth • Use of harsh or abrasive cleaners may harm finish and will void the warranty. • Do not use power tools when installing or spray lubricant on this hinges • 3 year warranty on Hinges only, all other hardware 1 year warranty. Maximum Door Capacities 2 Hinges 3 Hinges Weight 80 lbs (36 Kg) Width 28” (711 mm) Weight 120 lbs (54 Kg) Width 32” (813 mm)
