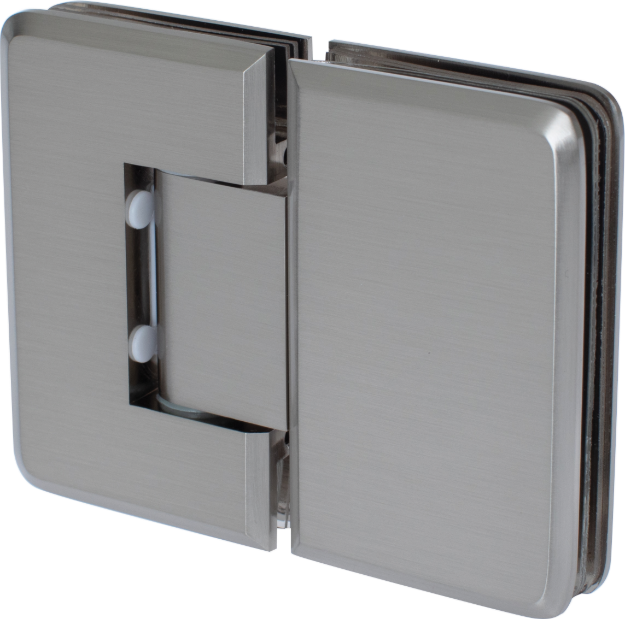

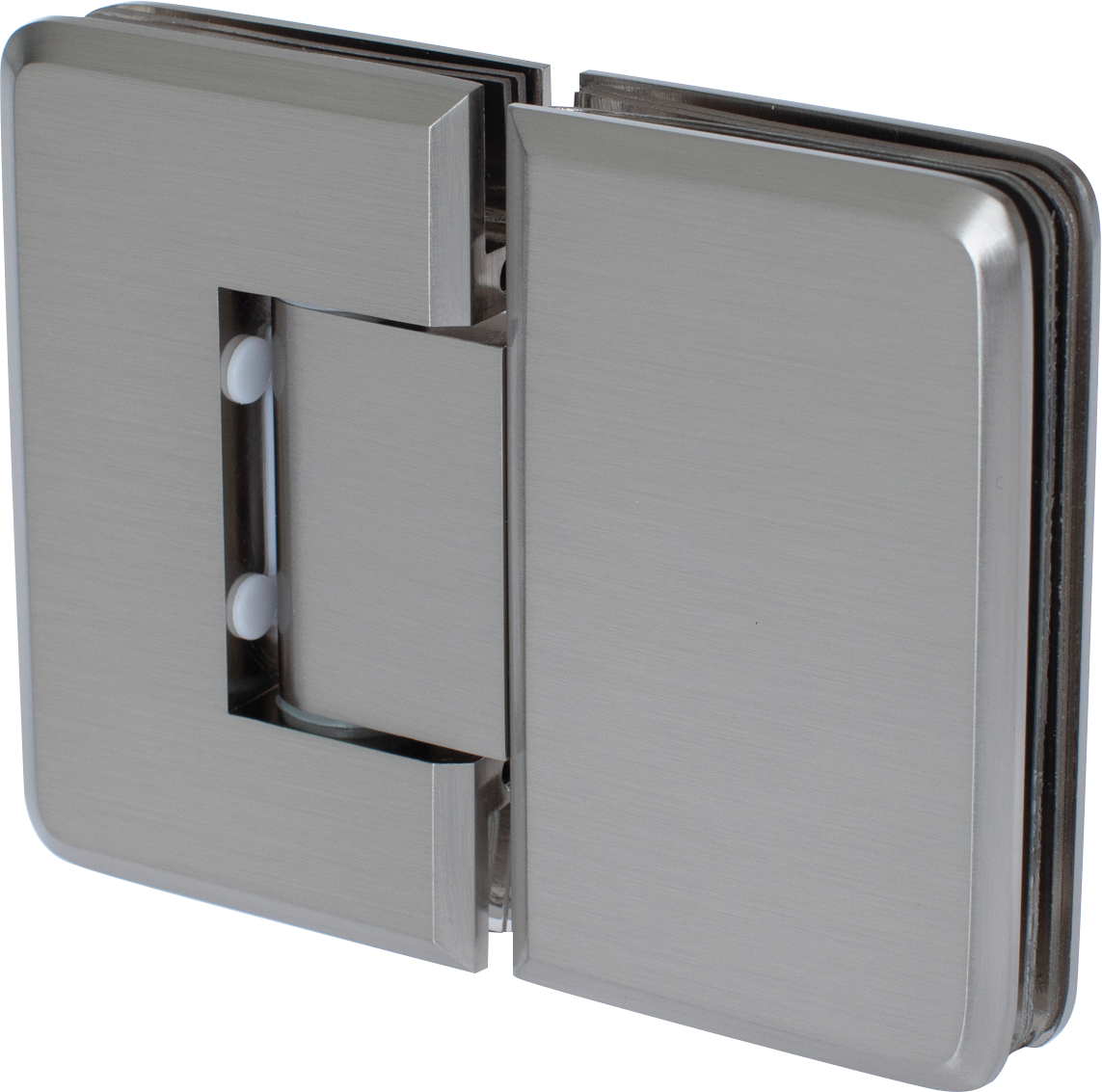

Glass-to-Glass 180° Beveled Hinge

SKU: Z-3020
Glass-to-Glass 180° Beveled Hinge
Availability: Please make a selection to view stock
Digital Support
Glass Requirements: • For 3/8” (10mm) Tempered Glass • For 1/2” (12mm) Tempered Glass Specifications: • Solid brass body and clear polyurethane gaskets • Screws and gaskets included • Hinge swings 90º in and 90º out with self-centering • Self-centering when within 15º of closed position • Use thick gaskets for 3/8” glass or thin gaskets for 1/2” glass Care: • Can be cleaned with water and a soft cloth • Use of harsh or abrasive cleaners may harm finish and will void the warranty. • Do not use power tools when installing or spray lubricant on this hinges • 3 year warranty on Hinges only, all other hardware 1 year warranty. Maximum Door Capacities 2 Hinges Weight: 80 lbs (36 kg) Width: 28" (711 mm)
