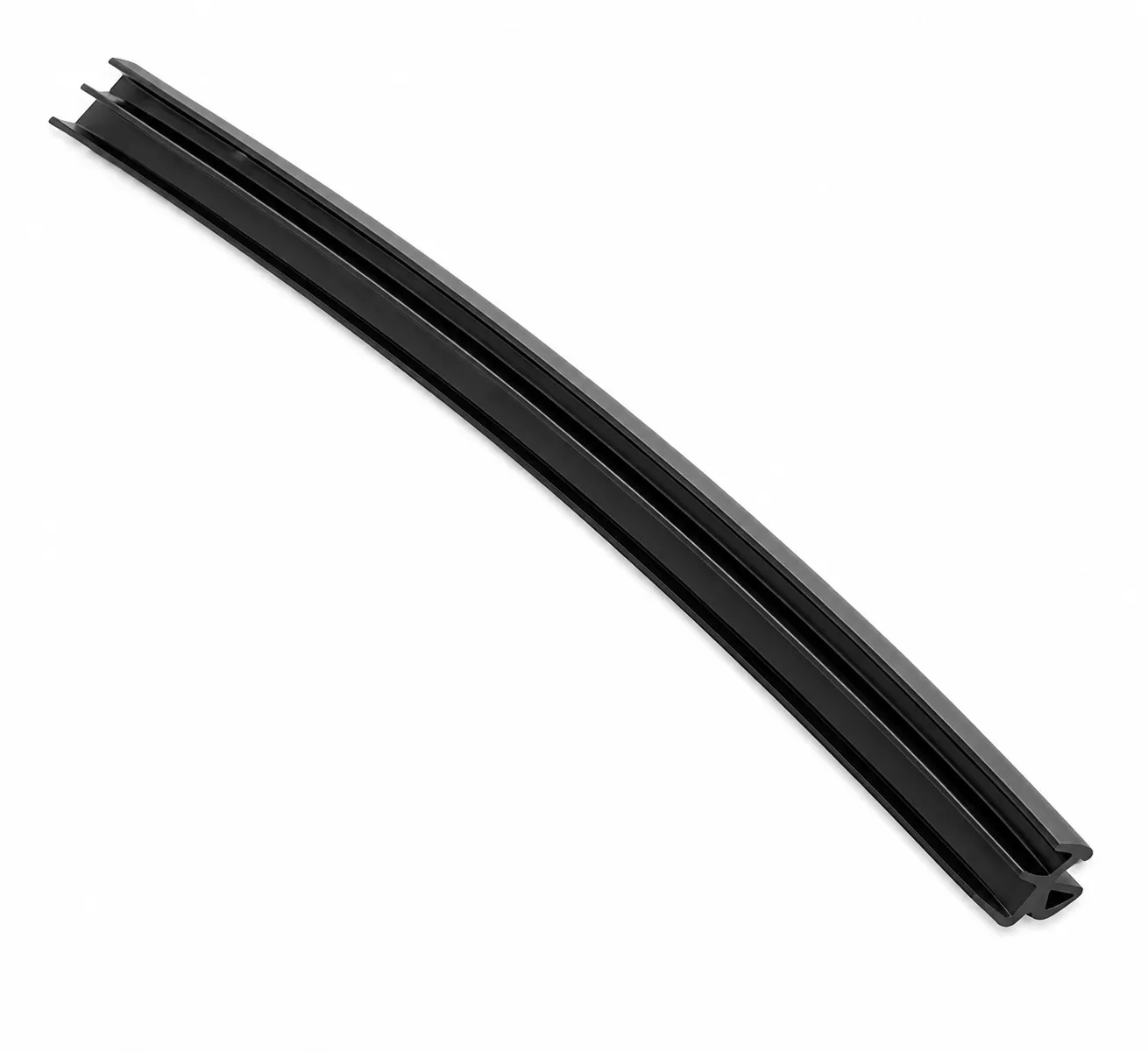

Base Shoe Gasket for 1/2" or 9/16" (6.6.4) Glass – 100' Roll
The RG06X100BL Base Shoe Gasket is a glazing component designed for compatible glass railing and base shoe systems using 1/2" or 9/16" (6.6.4) glass.
Supplied in a 100 ft roll, this gasket provides a continuous glazing solution for professional glass railing installations while helping create a secure and properly finished interface between the glass and the base shoe system.
The RG06X100BL is part of the Interglass Base Shoe Railing collection and is designed to work with compatible base shoes, clamps, cladding, and other system components. Interglass identifies the product as SKU RG06X100BL and specifies it for 1/2" and 9/16" (6.6.4) glass.
Designed for Base Shoe Glass Railings
The gasket is an important component of a base shoe glass railing system. It provides the glazing interface between the glass panel and the aluminum base shoe assembly.
When used with the appropriate base shoe and clamp configuration, the gasket helps complete the glazing assembly while maintaining a clean and consistent installation.
The RG06X100BL is specifically intended for:
- 1/2" (12 mm) glass
- 9/16" (6.6.4) glass
Interglass' technical literature lists the RG06X100BL for these glass thicknesses within its Base Shoe Railing system.
100 ft Continuous Roll
The gasket is supplied in a 100 ft roll, making it suitable for larger railing installations where continuous gasket material is required.
The roll format allows installers to cut the gasket to the required lengths according to the specific base shoe configuration and project dimensions.
Quantity per box: 1 roll.
Part of a Complete Base Shoe System
The RG06X100BL is designed to be used as part of a complete Interglass Base Shoe Railing System.
Compatible components include:
- RBS120D – Base Shoe 118" (3m) Pre-Drilled with 24 Holes
- RBS240D – Base Shoe 236" (6m) Pre-Drilled with 48 Holes
- RZ06 – Base Shoe Clamp for 1/2" or 9/16" Glass
- RC10 – Base Shoe Cladding 118" (3m)
- RTC10 – Base Shoe Top Cladding 118" (3m)
- REC1 – Base Shoe End Cap
- RGV1 – Rubber Filler Between Glass
- BSDB38 – Drain Block
Interglass lists the gasket within the same Base Shoe collection alongside these complementary components.
Compatible Glass Thicknesses
The RG06X100BL is designed for two common glass configurations:
1/2" Glass
Suitable for compatible base shoe systems designed around 1/2" (12 mm) glass.
9/16" Glass
Suitable for compatible systems using 9/16" (6.6.4) laminated glass.
For proper installation, always confirm the glass thickness and compatibility of the selected clamp, gasket, base shoe, and other system components before installation.
Professional Glass Railing Applications
The Base Shoe Gasket can be used as part of compatible glass railing systems for applications including:
- Balconies
- Terraces
- Decks
- Stairways
- Pool surrounds
- Residential glass railings
- Commercial properties
- Interior glass railings
- Exterior glass railings
- Architectural glass guardrails
Its 100 ft roll format is particularly practical for professional installers and glass fabricators working on larger railing projects.
Product Specifications
SKU: RG06X100BL
Product Type: Base Shoe Gasket / Glazing Gasket
Application: Glass Railing / Base Shoe Systems
Compatible Glass: 1/2" (12 mm) and 9/16" (6.6.4)
Length: 100 ft Roll
Quantity: 1 roll per box
The current Interglass product page confirms the SKU, 100 ft configuration, and product positioning as a glazing gasket, while the Interglass catalog specifies compatibility with 1/2" and 9/16" glass.
Complete Your Glass Railing System
For a complete Base Shoe installation, pair the RG06X100BL with the appropriate Interglass components based on the glass thickness and project requirements.
For 1/2" or 9/16" glass, the RZ06 Adjustable Clamp is the corresponding clamp listed by Interglass.
The system can then be completed with the appropriate Base Shoe profile, cladding, end caps, drainage components, and anchoring hardware.
Important: Always verify glass thickness, clamp compatibility, base shoe configuration, installation requirements, structural specifications, and applicable local building codes before installation. Follow the manufacturer's installation instructions for the complete system.
